Compact Storage Space with Mobile Pallet Racking

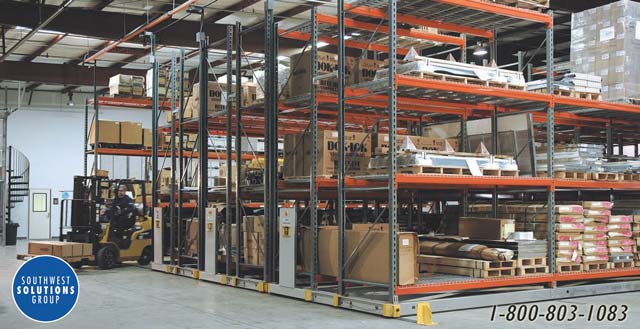

How Mobile Pallet Racking Works

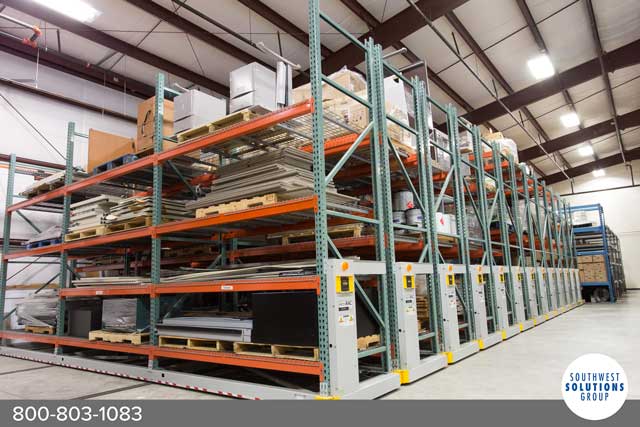

Mobile pallet racking, also called compact pallet racking or high-density pallet racking, consists of pallet racks mounted on mobile bases called carriages that slide laterally on floor rails. The mobile pallet racks compact together when not in use to increase the storage capacity and achieve maximum storage density. The mobile racks slide back and forth to open a movable aisle for access to inventory.

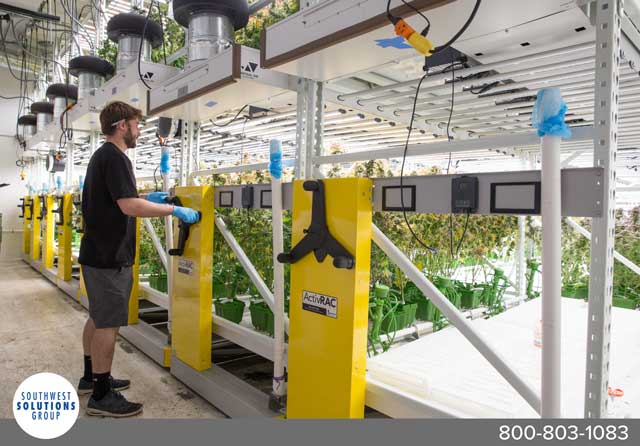

The mobile pallet racking system operates electronically or manually, depending on the weight capacity and model. Powered systems slide automatically at the press of a button, controlled by a touchpad or radio frequency remote. Lighter-duty systems operate using manual ergonomic three-spoke mechanical-assist handles that allow users to move thousands of pounds with minimal effort. Both systems have standard safety features and additional security options.

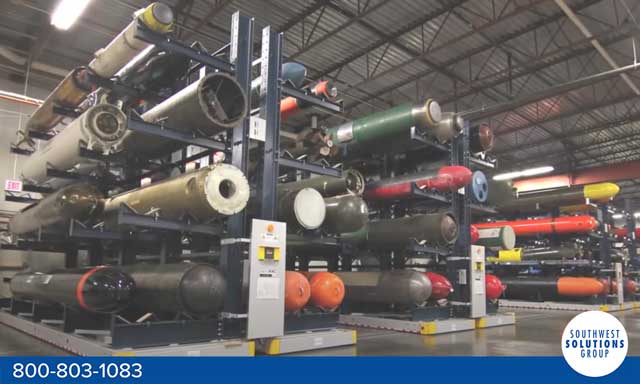

Mobile Compact Pallet Racking Applications

Mobile pallet racking systems are commonly used for industrial warehouse storage applications, factories, manufacturing facilities, and distribution centers. The compact design makes these pallet racks a good solution for storing goods that do not have a high turnover. The number of access aisles is determined based on your activity levels and needs.

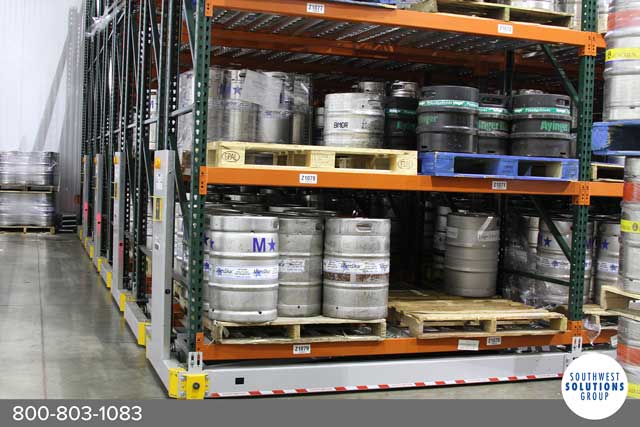

Mobile racking systems are an excellent solution for cold storage. Standard systems can withstand temperatures as low as -4°F and the stainless steel mobile pallet rack systems are suitable for temperatures as low as -20°F. The corrosion-resistant stainless steel option is also excellent for sterile environments such as hospitals, pharmaceutical manufacturing, cleanrooms, food processing, and shipboard locations.

These compact storage solutions are available in various models with weight capacities ranging from 3,000 to 30,000 pounds per carriage. Suitable for heavy-duty industrial storage, high-density pallet racking systems are available in lighter-duty applications such as retail storage and indoor horticulture.

Mobile Pallet Racking Features

High-density pallet racking systems have several safety features to protect operators and stored goods while using the system. Powered systems have aisle entry sensors that automatically halt the moving racks if something enters an open aisle while the system is in motion. Similarly, a photo beam runs the length of each rack and stops the system if it detects something in the closing aisle—for example, a fork truck or pallet left in an open aisle. Standard safety features on a mechanical mobile pallet racking system include an anti-roll safety lock and anti-drift mechanism.

Other features of the mobile compact pallet racking system include:

• Weight capacity of 3,000 to 30,000 pounds per section of shelving
• Infrared or radio frequency remote control access for powered options
• Touchpad access control for powered options
• Carriage security lock for mechanical systems
• Surface mount or recessed rails available
• Unlimited carriage lengths and configurations
• Compatible with existing racking and shelving systems
• Anchors to existing concrete slab
• Operable in temperatures as low as -20°F
• Battery backup opens aisles in the event of a power outage
• Custom-engineered systems available on request

Benefits of Mobile Pallet Racking

Space Savings

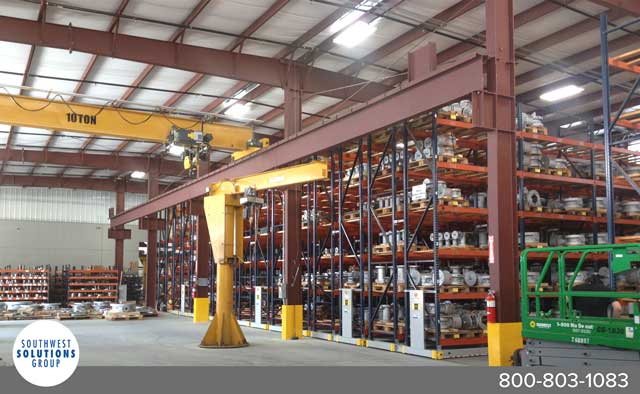

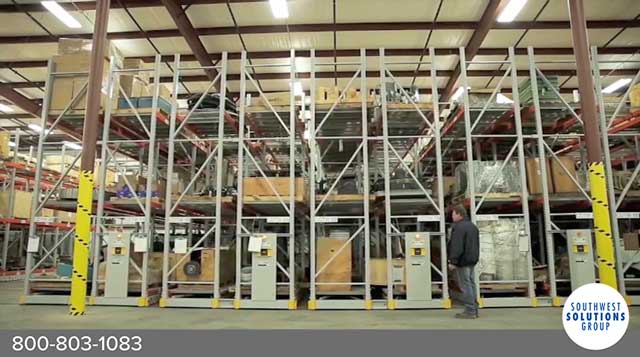

One of the most prominent benefits of mobile pallet racking is saving space. By cutting out static access aisles, compact mobilized pallet racks allow you to double your storage capacity in your existing space. High-density pallet racking could eliminate the need for costly expansions or off-site storage for facilities running out of storage space. Alternately, mobile pallet racks can cut your storage space requirements in half, freeing up space for revenue-generating activities such as packing and order fulfillment.

Ease of Use

High-density pallet racking systems are ergonomic and easy to use. The mechanical-assist handle and push-button electric controls provide quick access to a needed aisle with minimal effort. Plus, remote control access for powered systems means that employees can save time by opening the aisle in advance so that it’s ready when they arrive, with no need to stop or get down from a forklift to open the system. In addition, the system provides 100% visibility and access to inventory.

Cost Effectiveness

Mobile pallet racking is a cost-effective solution that provides a quick return on investment. By maximizing storage density and reducing storage space requirements, high-density pallet racking makes your warehouse more energy-efficient and reduces operating costs. These benefits are especially crucial in cold storage spaces. A temperature-controlled facility can reap up to 60% savings on energy costs by replacing static racking with compact pallet racking.

High-density pallet racking’s space-saving design can also save money for facilities short on storage space. It eliminates the costs of new construction or off-site storage space by multiplying the storage capacity in a facility’s existing footprint. In addition, the compact system reduces labor costs since employees don’t have to travel as far to retrieve inventory. Visit our online store to see our industrial storage products.

Adaptability

Mobile pallet racking systems are flexible and highly customizable. Carriages are available in a range of models and custom dimensions. You can also save money by using your existing pallet racks in the high-density system, which accommodates a variety of shelving types.

The mobile pallet racking system is customizable to your needs. You can expand or downsize your storage system if your storage requirements change in the future. You can also break your pallet racking into smaller modular systems in various locations around your facility to provide convenient access for all employees.

Contact Us for Mobile Pallet Racking

Southwest Solutions Group® provides design and installation services for mobile pallet racking systems. We will also provide a free consultation to determine your exact needs and specifications before the design begins. To learn more or to speak with a specialist, call us at 1-800-803-1083 or send us a message today.
